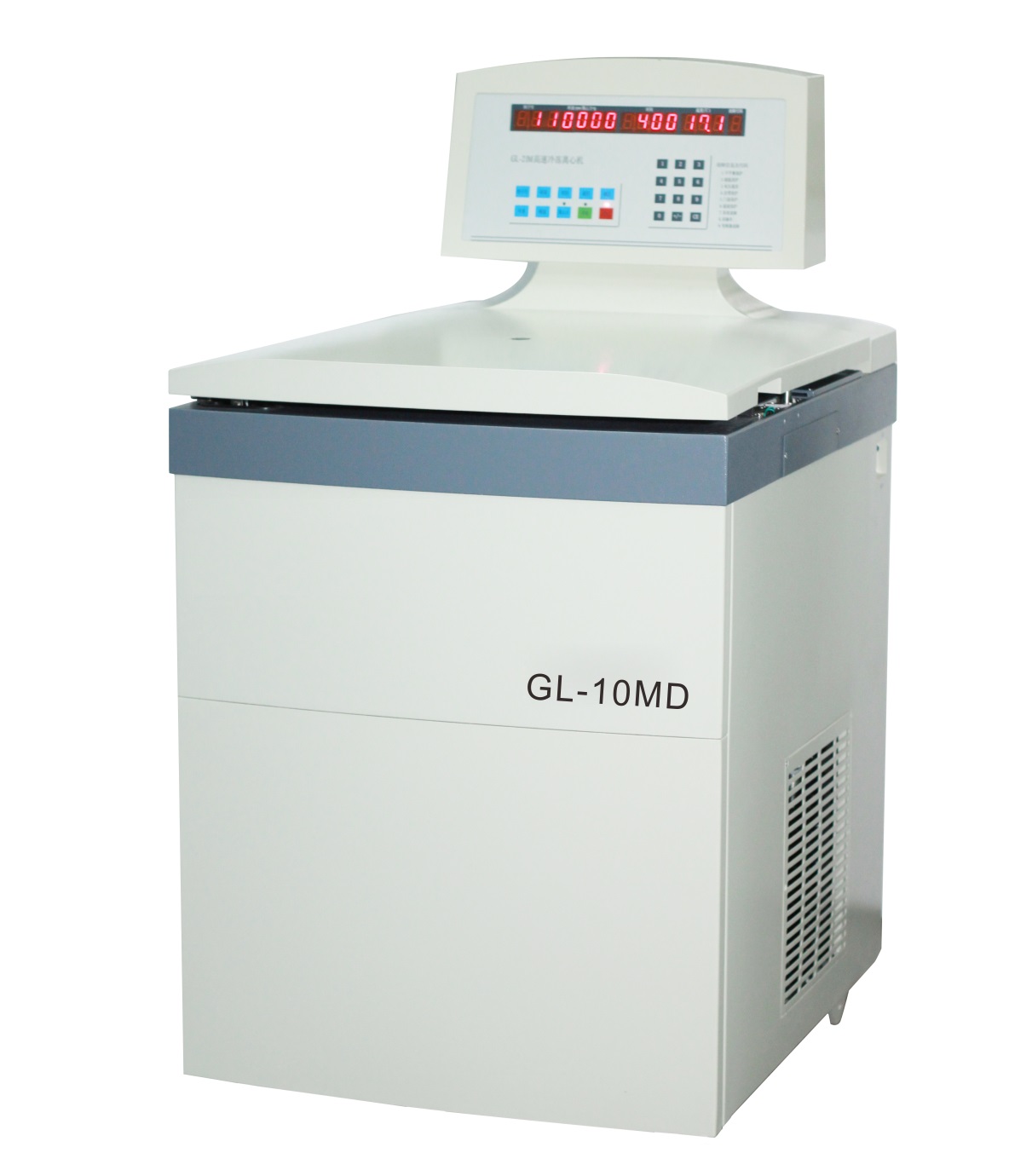

GL-10MD is designed to meet the end customers’ requirements for large capacity and high speed centrifuge. It is suitable for the laboratory analysis in Bioengineering, genetic engineering, bio-pharmaceutical etc.
Features:
1. Max. speed up to 10000rpm, and Max. RCF reaches 18300xg.
2. Microprocessor control, drive by AC inverter motor, offering low noise and little vibration for long service life.
3. Touch panel and digital display.
4. Acceleration and deceleration time can be set freely, automatic calculation of RCF value for ideal separation result.
5. Accommodating multiple safety measures against over-speed, over heat or imbalance operation, including door lid locking system, to protect the operator and centrifuge.
6. Programmable operation and the routine programs can be saved.
7. World advanced and environment-friendly compressor set with ideal cooling efficiency.
8. Multiple adapters are available for 4x1000ml swing-out rotor for convenient applications.
Technical Parameters
Model | GL-10MD |
Max. Speed | 10000rpm |
Max. RCF | 18300xg |
Max. Capacity | 6x1000ml |
Speed Accuracy | ±10rpm |
Time Setting Range | 1min to 23h59min |
Temp. Setting Range | -20℃ to 40℃ (1℃ increment) |
Temp. Accuracy | ±1℃ |
Compressor | environment-friendly refrigerant(R404a) |
Noise | ≤65dB(A) |
Power Supply | AC220±22V 50/60Hz 30A |
Power Consumption | 5.5kw |
Dimensions (WxDxH) | 710x820x1200mm |
Package Size (WxDxH) | 920x1040x1520mm |
Net Weight | 310kg |
