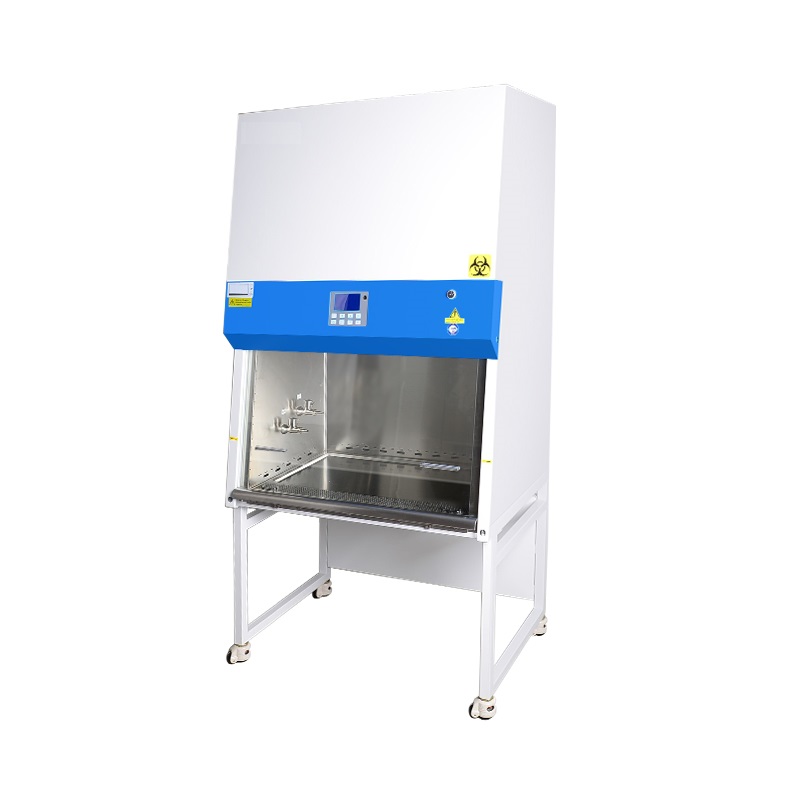

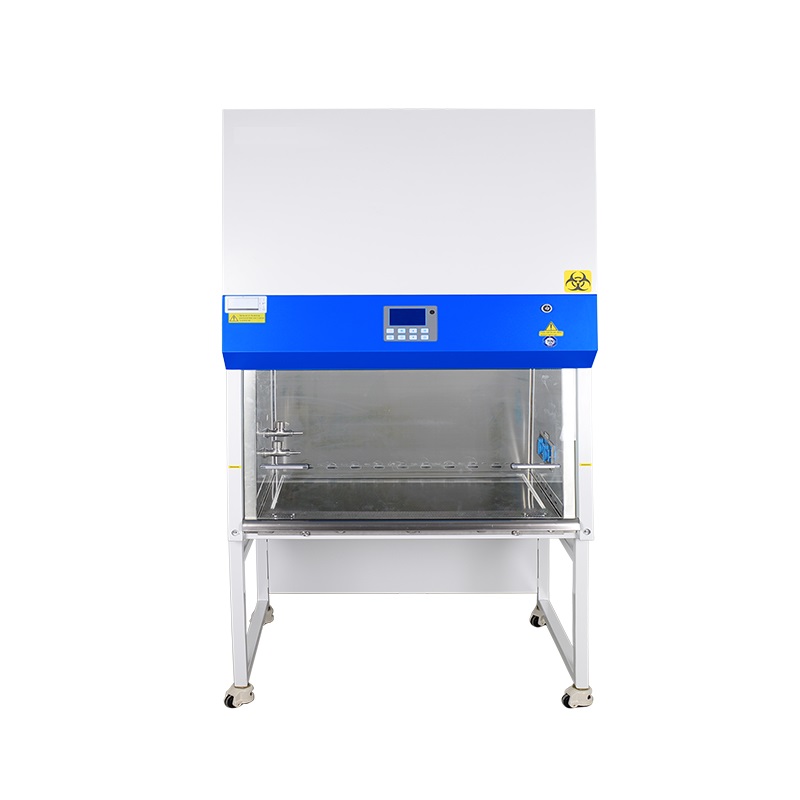

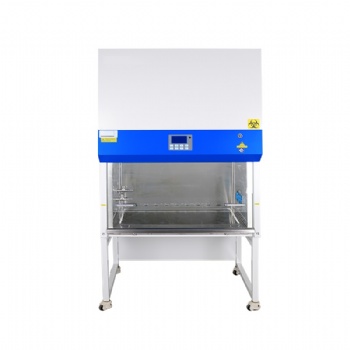

EN Class II A2 Biological Safety Cabinet Advantage: 1. Large LCD display, all information displayed. 2. Automatic air speed adjustable with filter block. 3. With memory function in case of power-failure. 4. Side & back wall is made up of single piece stainless steel. 5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window. 6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Introduction:
This cabinet defined as class II A2 type microbiological safety cabinet which totally meets the international standard for biological cabinet EN 12469:2000 standard. Microbiological safety cabinet is a kind of negative pressure filtration system for protecting operator, environment and work material.
Airflow system: 70% air recirculation, 30% air exhaustA2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Models：
Model | BSC-3FA2 (3') | BSC-4FA2(4') | |
External Size(W*D*H) | 1087*775*2265mm | 1383×775×2295mm | |
Internal Size(W*D*H) | 910*600*660mm | 1210×600×660mm | |
Work Surface Height | 750mm | ||
Max Opening | 520mm (21’’) | 550mm (22’’) | |
Tested Opening | Safety height 200mm (8’’) | ||
Airflow Volume | Inflow | 348m3/h(205cfm) | 462m3/h(272cfm) |
Down flow | 65%:649m3/h(382cfm) | 65%:863m3/h(507cfm) | |
Exhaust | 35%:348m3/h(205cfm) | 35%:462m3/h(272cfm) | |
Front Window | Manual. Two-layer laminated toughened glass ≥5mm. Anti UV | ||
HEPA Filter | Two, 99.999% efficiency at 0.3um, filter life indicator | ||
Filter Guard Type | Aluminum alloy frame | ||
Noise | NSF 49≤61 dB/EN 12469≤58 dB | ||
Illumination | ≥1000Lux | ||
Display | LCD Display | ||
Waterproof Socket | 2, Total consumption: ≤500W | ||
Tap | Water tap*1, Gas tap *1 | ||
Ground Resistance | ≤ 0.10Ω | ||
Power Supply | AC230V, 50Hz | ||
Consumption | ≤500W | ≤600W | |
Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height | ||
AC Motor | One ECM motor, 230V acceptable, Speed adjustable, high efficiency and low power consumption | ||
Material | Working area: 304stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | ||
UV Lamp | 18W | 30W | |
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |||
Fluorescent lamp | 21W*2 | 28W*2 | |
Standard Accessory | Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, stainless Steel I.V. bar with 10 hooks. | ||
Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, Electric height adjustable base stand, Motorized front window | ||
Package Size (W*D*H) | 1250*1080*1840mm | 1540*1080*1900mm | |
Gross Weight | 270kg | 334kg | |
Standard Accessory：
waterproof sockets 1pcs
Base stand 1pc
Fluorescent lamp 1pc
Drain valve 1pc
UV lamp 2pc
SS water & gas taps
Stainless steel I.V. bar with 10 hooks
Optional accessory：
Armrest 1pc
Formalin fumigation sterilizer 1pc
Infrared sterilizer 1pc
Airflow tester 1pc
Remote control 1pc
Electric height adjustable base stand
