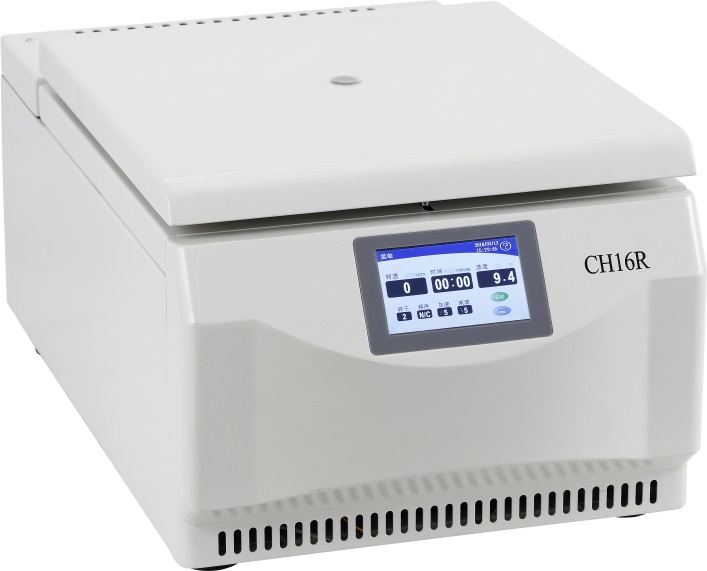

CH16R tabletop refrigerated centrifuge is specially designed for blood collecting, The capacity for the swing rotor is 16x15ml, and the adapter is suitable for the spin of vacuum blood collection tubes, nucleic acid centrifuge tubes or 10ml,15ml tubes, especially for the centrifuging check of nucleic acid . The centrifuge chamber is made of stainless steel, equipped with multi--protection devices and the unique sucker feet for safe and steady operation. It adopts high performance with fully enclosed rotary compressor for any rough road driving of the blood collection.
Features:
1. Unique sucker feet make the centrifuge operate steadily and safely.
2. 5-inch touch control screen enable operation simple, easy readout, and the set parameters and running parameters can be displayed simultaneously.
3. Equipped with several adapters, making it a multi-purpose centrifuge.
4. It adopts environment-friendly compressor set with ideal cooling efficiency.
5. The centrifuge is provided with several protection functions of over-speed, over-temperature, door locking system for safe and reliable operation of the centrifuge.
Technical Parameters
Model | CH16R |
Max. Speed | 5000rpm |
Max. RCF | 3555xg |
Max. Capacity | 4x4x15ml or Nucleic acid tube |
Speed Accuracy | ±30rpm |
Time Setting Range | 1min to 99min |
Temp. Setting Range | -20℃~40℃ |
Control Accuracy | ±1℃ |
Compressor | environment-friendly refrigerant(R134a) |
Noise | <65dB(A) |
Power Supply | AC220±22V 50/60Hz 10A |
Power Consumption | 500W |
Dimensions (WxDxH) | 415x625x320mm |
Package Size (WxDxH) | 960x530x520mm |
Net Weight | 55kg |
