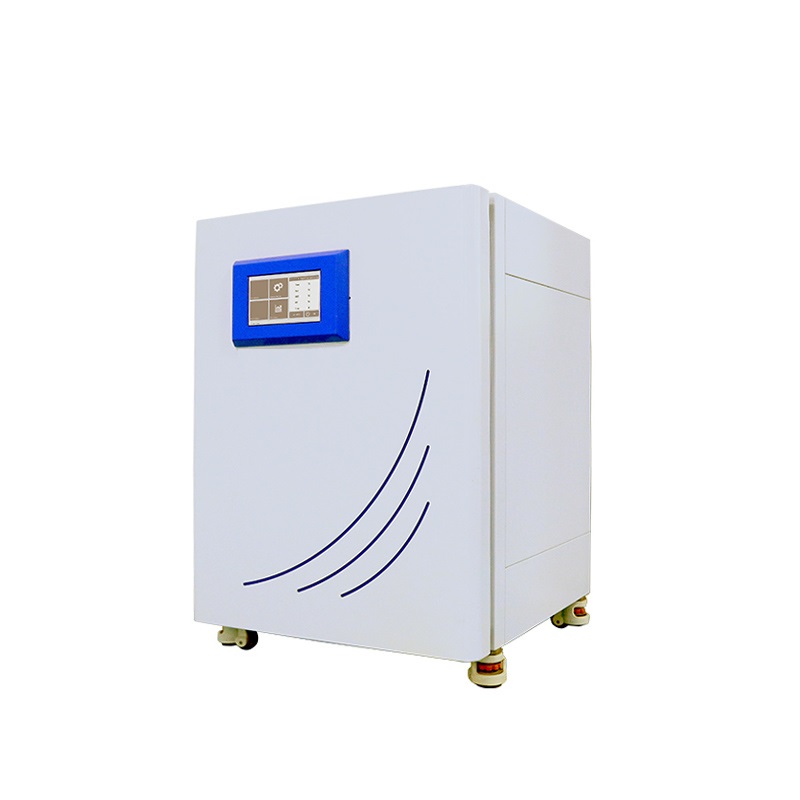

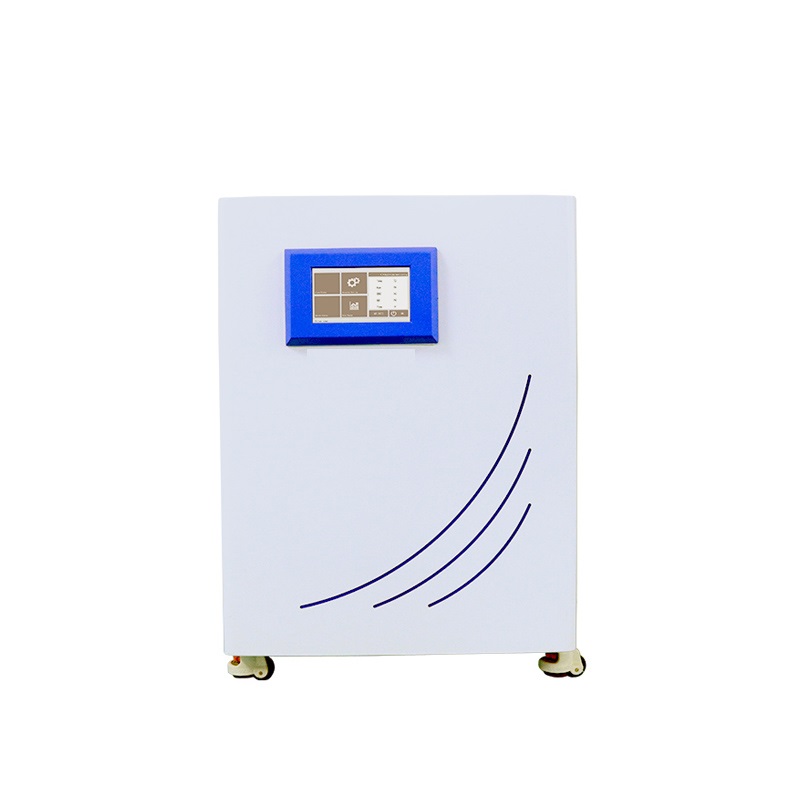

Tri-Gas CO2 Incubator


Carbon dioxide (CO2) incubators provide optimal growing conditions and contamination prevention for valuable cell cultures.We provide a wide range of CO2 incubators, ranging from a small capacity and volume to a large scale capacity cabinet. All the CO2 incubators are build with the patented Water Jacket and Air Jacket systems, which minimizes the risk of condensation at the present and in the future.

Inquiry Now

Features:


* Air jacket: with 90°C steam sterilization function.

* Equipped with USB port and LCD touch screen, the incubator can save data in real time.

* High quality infrared/ZrO2 sensor for accurate CO2/O2 concentration.

* The working chamber adopts round angle structure, easy to clean.

* High quality HEPA filter ensures the inside gas quality.

* SMC brand gas circuit valves ensure more stable gas concentration and less consumption of gas.

* Push-pull shelves with holes ensures better temperature uniformity.

* Microcomputer controller, LCD displays temperature, CO2/O2 concentration ,run-time and timing.

* Three Liters water reservoir in the bottom chamber ensures high humidity.


Model:

Model

BW-C160T

Capacity

160L

Temp. Range

RT +5~60 °C

Control Type

Microcomputer controller

Temp. Fluctuation

≤+0.3°C

Temp. Uniformity

≤+0.5 C

Time Setting

999h or continuous

Alarm

Audible and visual alarm; Over-temperature alarm; Gas concentration alarm; Low water level alarm.

Shelves

3 pcs/ adjustable

Material

External cold-rolled steel with painting; Internal stainless steel

Door

With inner door and external door

CO2 Range

Infrared sensor, range 0~20%

CO2 Control Resolution

0.1%

O2 Range

ZrO2 sensor, range 3-20% /22-85%

O2 Control Resolution

0.2%

Humidification Type

Water reservoir in the bottom chamber ensures high humidity (90%≤relative humidity≤S99%)

Sterilization Type

With 90°C moist heat decontamination function (95%≤humidity≤99%RH)

Ambient Temp. & Humidity

18~30°C, suggest 25+2°C; Relative humidity≤80%

Caster

Foot master caster

Consumption

700W

Power Supply

AC220V±10%, 50/60Hz(Standard); AC110V±10%, 60Hz(Optional)

Internal Size(W*D*H)mm

492*534*622

External Size(W*D*H)mm

688*775*955

Packing Size(W*D*H)mm

841*1003*1140

Gross Weight(kg)

110
