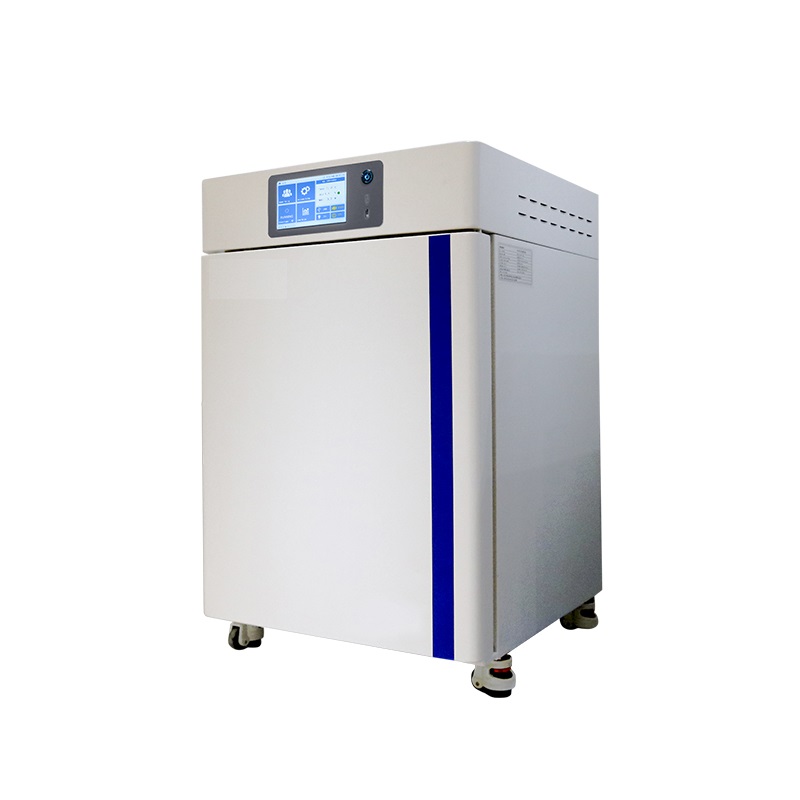

CO2 Incubator Water Jacketed


Features:
1. Water tank for humidity in the chamber.
2. Air jacket:equipped with UV Lamp for sterilizing; Water jacket: equipped with HEPA filter.
3. Equipped with USB port and LCD touch screen, the incubator can save data in real time.
4. High quality CO2 gas filter ensures the inside gad quality.
5. SMC brand gas circuit valves ensure more stable CO2 concentration and less consumption of CO2 gas.
6. Microcomputer controller,LED displays temperature,CO2 concentration ,run-time and timing.
7. High quality infrared sensor for accurate CO2 concentration.

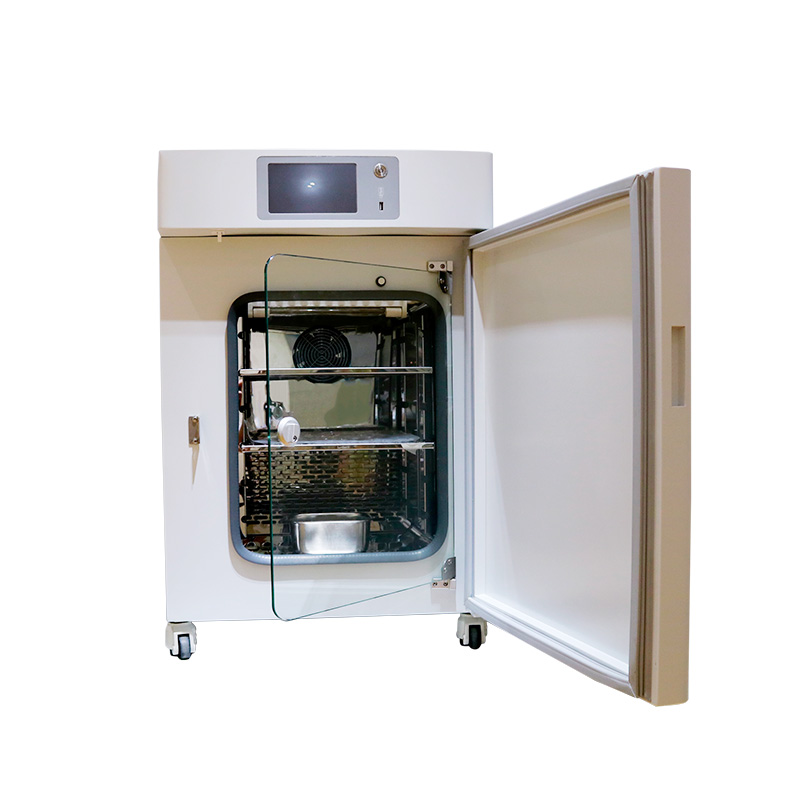

8. The working chamber adopts round angle structure , easy to clean.

Inquiry Now

Introduction:


Carbon dioxide (CO2) incubators provide optimal growing conditions and contamination prevention for valuable cell cultures.We provide a wide range of CO2 incubators, ranging from a small capacity and volume to a large scale capacity cabinet. All the CO2 incubators are build with the patented Water Jacket and Air Jacket systems, which minimizes the risk of condensation at the present and in the future.


Models:


Model

BJPX-C50

BJPX-C80

BJPX-C160

Capacity

50L

80L

160L

Heating

Air jacket

Air jacket

Water jacket

Air jacket

Water jacket

Temp. Range

RT+5~60 ℃

Control Type

Microcomputer controller

Temp. Fluctuation

≤±0.2℃(at 37℃)

Temp. Uniformity

≤±0.3 ℃(at 37℃)

Time Setting

999h or continuous

Alarm

Audible and visual alarm; Over-temperature alarm; CO2 Concentration alarm.

Shelves

2 pcs/ adjustable

Material

External cold-rolled steel with painting; Internal stainless steel

Door

With inner door and external door

CO2 Range

Infrared sensor, range 0~20%

CO2 Control Resolution

0.1%

Humidification Type

Water tank for natural evaporation

Sterilization Type

UV lamp

Ambient Temp. & Humidity

18~30℃, suggest 25±2℃; Relative humidity ≤80%

Caster

Foot master caster

Consumption

350W

600W

875W

650W

1000W

Power Supply

AC220V±10%, 50/60Hz(Standard); AC110V±10%, 60Hz(Optional)

Internal Size(W*D*H)mm

337*338*443

377*410*524

428*412*522

477*473*711

528*512*722

External Size(W*D*H)mm

500*527*821

600*596*921

647*593*1070

700*666*1101

747*694*1260

Packing Size(W*D*H)mm

655*685*970

735*735*1070

725*780*1225

795*835*1250

824*877*1425

Gross Weight(kg)

68

83

108

108

145
