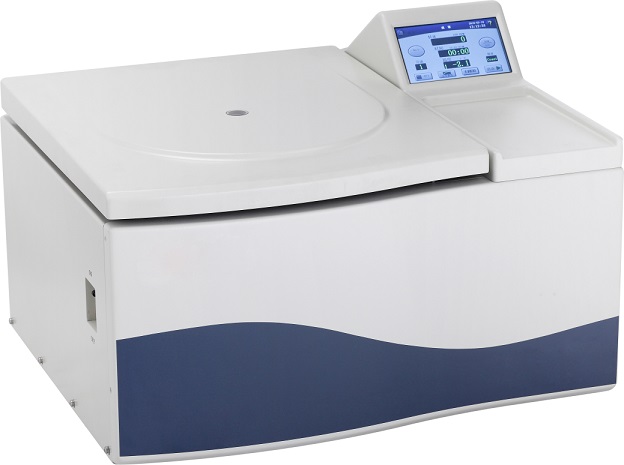

Tabletop high speed refrigerated centrifuge H2500R


H2500R Tabletop high speed refrigerated centrifuge, based on years of development and research, is a new generation of smart centrifuge, accommodating powerful and intelligent control system, reaching the world advanced technical level. The rotor installation is fast and convenient,and disassemble without any tools. It is the ideal product in the field of molecular biology, protein, DNA, RNA, cell separation and clinical medicine.

Inquiry Now

Features:


◆ Convenient installation of the rotor without the help of any tools, just place the rotor on the drive shaft without screw fixing or button operation.

◆ 7-inch HD touch panel control, easy operation and intuitive display. The setting and running parameters can be displayed in real time.

◆ Super large data storage can save several months of running data, fault record etc., for the operator to trace the past running information. Hundreds of running programs can be edited and each program can be described individually by the operator.

◆ Super control system to offer the function of 5-steps gradient separation, sample ID, operation at the appointed time, the mode of profiles, free choice of programs and languages etc.

◆ Offer safety performance, access control to prevent programs from unexpected modification or deletion.

◆ Safe and reliable centrifugation: Max. Speed up to 25000rpm and diversified rotors are available for free choice.

◆ Provide multiple protection functions against imbalance, over-speed operation, door lid malfunction, including rotor identification, etc.

◆ Various rotors are available for high speed and large capacity separation, a preferred model to replace floor standing high speed centrifuge.

◆ Featuring 10 acceleration profiles and 11 deceleration profiles to prevent second emulsion or turbid.



Technical Parameters


Model

H2500R

Max. Speed

25000rpm

Max. RCF

50560xg

Max. Capacity

6x100ml

Speed Accuracy

±10rpm

Time Setting Range

1s to 99min59s or 1min to 99h59min

Timing Mode

start timing, speed-reaching timing, Instantaneous & continuous timing

Temp. Setting Range

-20~40

Control Accuracy

±1℃

Compressor

environment-friendly refrigerant(R134a)

Noise

62dB(A)

Power Supply

AC220±22V 50/60Hz

Power Consumption

1000W

Dimension(WxDxH)

380x660x330mm

Package Size (WxDxH)

480x940x460mm

Net Weight

48kg
