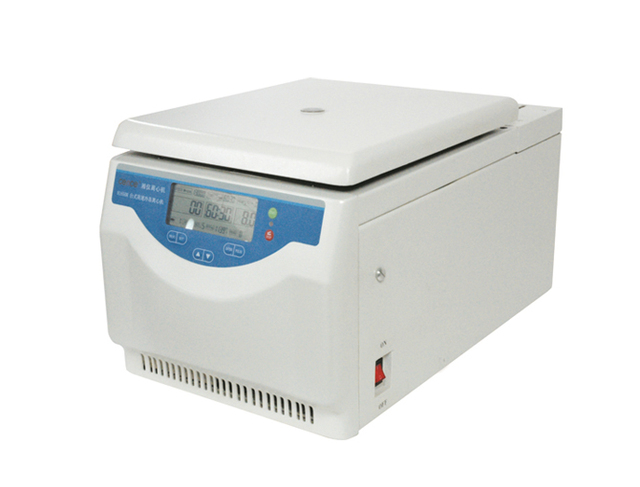

Compact-designed and low-noise in operation, the centrifuge supports 8 types of rotors for free choice and meets your diversified demands, including micro rotors as well as PCR tube rotors. It accommodates the most advanced refrigerating technologies to provide accuracy control of temperature as well as energy saving.
Features
◆ 8 types of rotors are available for free choice. It can spin with 0.2ml/1.5ml/5ml test tubes and PCR strip tubes.
◆ Microcomputer control, direct drive by AC inverter motor with high starting torque.
◆ Large LCD, speed, time, RCF, Acc and Dec profiles can be set freely. Multiple regular programs can be saved for programmable operation.
◆ 9 Acc profiles and 10 Dec profiles(0 is coast), 3-stage vibration damping, achieving ideal centrifugal result.
◆ The protective functions of electronic door interlock, stainless steel chamber, imbalance, over-temperature and over-speed for safe operation.
◆ The operation temperature can be kept at -4℃ even when the rotors running at the max. speed, achieving ideal cooling performance.
Control Panel
◆ Clear and intuitive, easy data readout from the panel.
◆ PULSE key is provided for instantaneous centrifugation.
◆ Set-speed, set-time, set-temperature and running speed, time, temperature can be displayed at the same time.
◆ Automatic calculation of speed and RCF which can be displayed simultaneously.
◆ Program numbers can be set and called for the next time operation.
Technical Parameters
Model | H1650R |
Max. Speed | 16000rpm |
Max. RCF | 21532xg |
Max. Capacity | 8x10ml |
Speed Accuracy | ±10rpm |
Time Setting Range | 30s to 99min59s |
Temp. Setting Range | -20℃~40℃ |
Control Accuracy | ±1℃ |
Compressor | environment-friendly refrigerant(R134a) |
Noise | ≦65dB（A） |
Power Supply | AC220±22V 50/60Hz 10A |
Power Consumption | 1000W |
Dimensions (WxDxH) | 350x600x340mm |
Package Size (WxDxH) | 460x810x510mm |
Net Weight | 70kg |
