Introduction:
Features:
1.Longitudinal slide up to 310mm for free access to C-arm without repositioning the patient.
2.Extreme weight load capacity of 350kg with highest safety and stability.

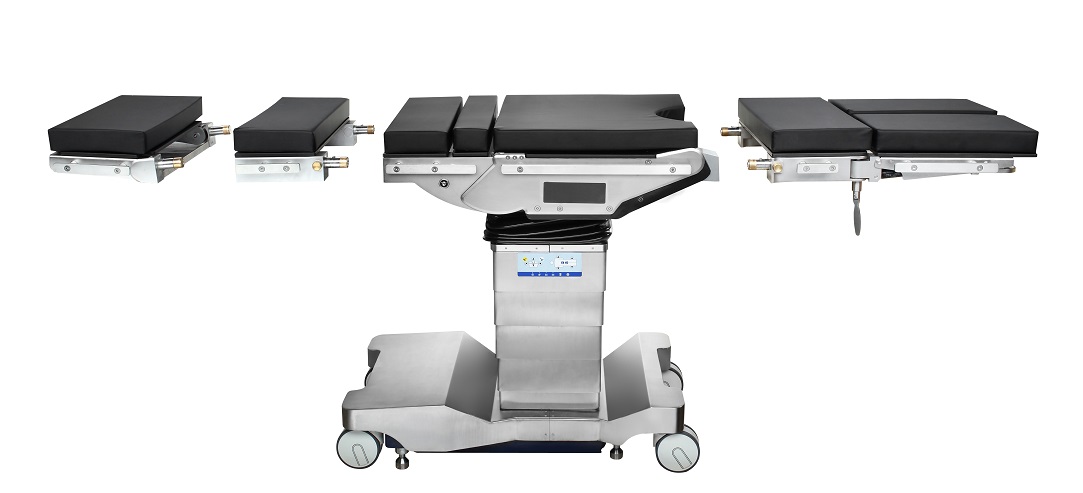

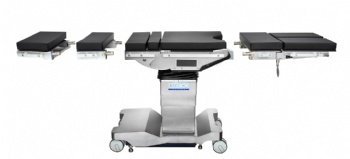

3.Modular design tabletop tailored for various surgical discipline needs.
4.The Easy click new mounting point enables the table adapted to wide variety of surgery and patients' height.
5.Memory pad with antistatic, waterproof design.
6.Standard override panel control makes the control safer.
7.Maximum and minimum heights of the ET800, for comfortable working, both seated and standing.
Tabletop Length/width | ≥2100/550mm |
Tabletop Elevation(up/down) | ≥1050/≤550mm |
Trendelenburg/Anti-tredelenburg | ≥35°/≥35° |
Lateral tilt (left and right) | ≥25° |
Head plate adjustment | Up:≥40°,down:≥90°,flexible:≥40° |
Leg plate adjustment | electric up:≥80° electric down:≥90° manual down ≥90° manual outward:≥90° |
Back plate adjustment | Up:≥80°/ down:≥45° |
Sliding | 310mm |
Kidney Bridge | 120mm |
Flex: | ≥225° |
Reflex: | ≤100° |
