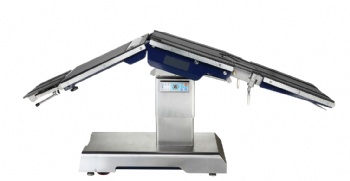

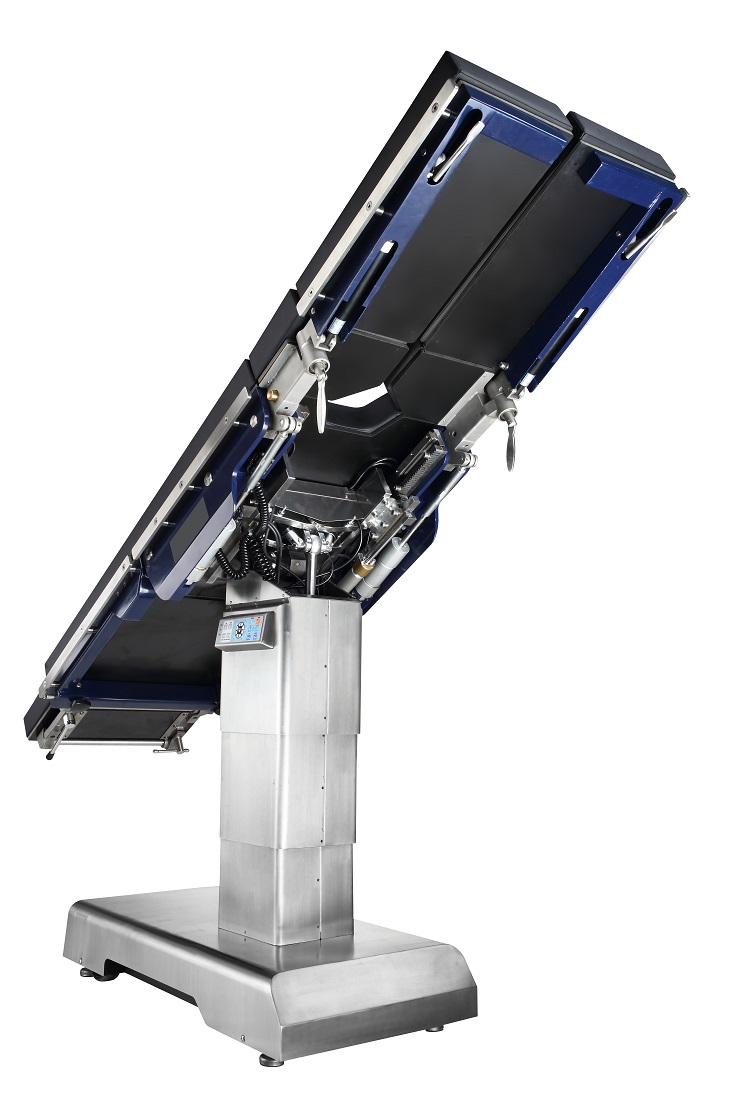

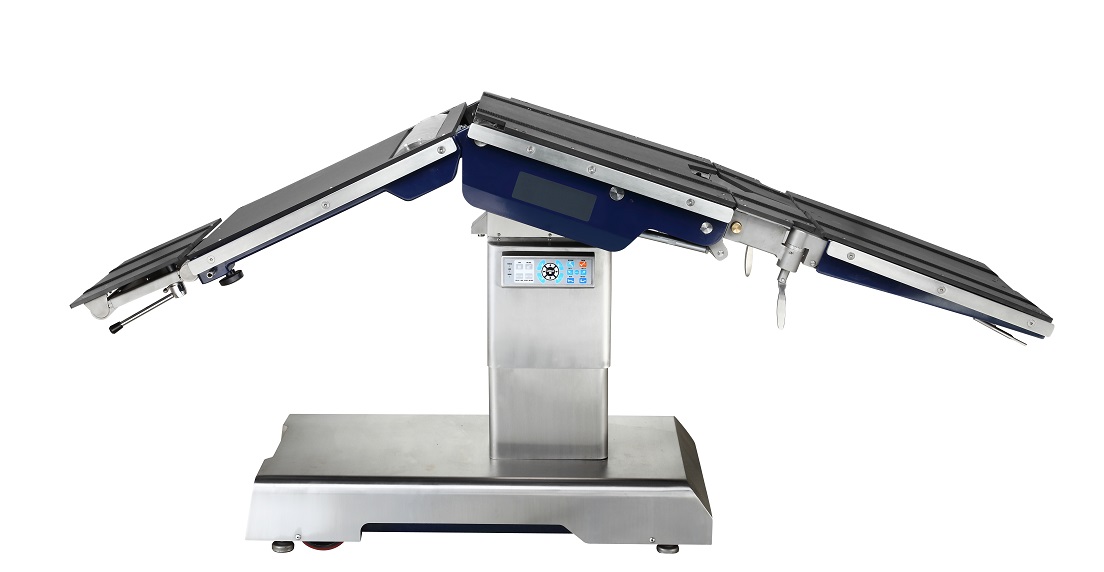

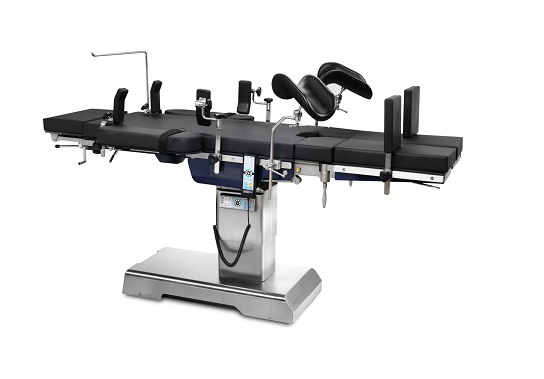

Electrical Hydraulic Operation Table BE700

Introduction:

Features:

1.Maximum 350mm motorised longitudinal shift for flexible use of the C-arm.

2."EASY CLICK" for simple and quick module changes.

3.Leg plate: Imported gas spring for easy controls.

4.One button reposition function, designed and made specially for X-ray and C-arm use.

5.Double control system.

6.Built-in kidney bridge.

7.Two joint head plate.

Tabletop Length/width	2170/550mm
Tabletop Elevation(up/down)	1100/690mm
Trendelenburg/Anti-tredelenburg	30°/30°
lateral tilt	20°/20°
Head plate adjustment	up:45°/down:90°
Leg plate adjustment	up:15°,down:90°,outward:90°
Back plate adjustment	up:85°/dwon:40°
Sliding	350mm
Kidney Bridge	110mm
