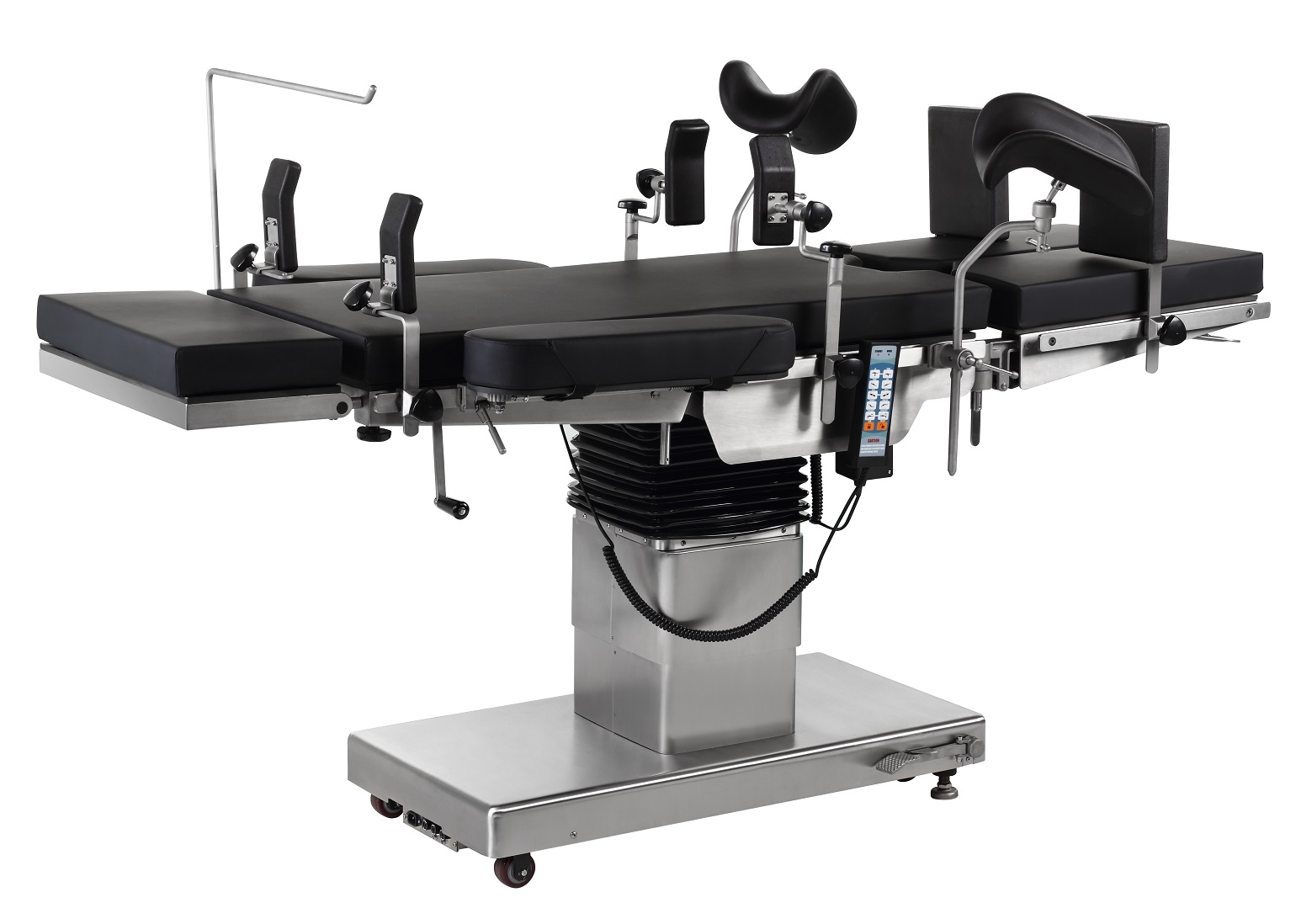

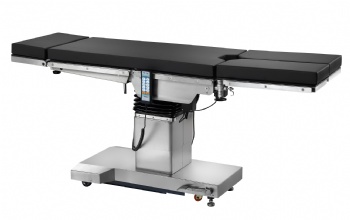

Introduction:
Extra wide tabletop, long horizontal sliding that can be suitable for both X-ray and C-arm use. Adopted micro touch remote control that enables flexible and smooth abjustments on head plate, back plate and seat plate.
With automation, low noise, high reliability.
Key parts adopted imported ones, can be regarded as an ideal Electric Operating Table.
Technical Data | data |
Tabletop Length/width | 2070/550mm |
Tabletop Elevation(up/down) | 1000/700mm |
Trendelenburg/Anti-tredelenburg | 25°/25° |
Lateral tilt | 15°/15° |
Head plate adjustment | up:45°/down:90° |
Leg plate adjustment | up:15,down:90°,outward:90° |
Back plate adjustment | up:75°/down:20° |
Kidney bridge | 120mm |
Sliding | 300mm |
