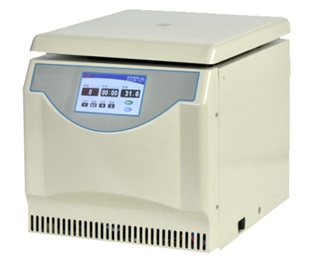

CH12R tabletop refrigerated centrifuge is specially designed for blood collecting. The capacity for the swing rotor is 8x10ml or 12x5/7ml, and the adapter is suitable for the spin of blood vacuum collection tubes or nucleic acid centrifuge tubes, especially for the centrifuging check of nucleic acid. The centrifuge chamber is made of stainless steel, equipped with multiple protection devices and the unique sucker feet for safe and steady operation. It adopts high performance with fully enclosed rotary compressor for any rough road driving of the blood collection vehicle.
Features:
1. It adopts double-lay structure, compact design and small footprint.
2. Unique sucker feet ensures the operation steadily and safely.
3. 5-inch touch control panel enables operation simple, easy readout,and the set parameters and running parameters can be displayed simultaneously.
4. Equipped with several adapters, it can spin 2~5ml vacuum blood collection tubes, 8~10ml nucleic acid centrifuge tubes,or other 10ml tubes,which makes it a multi-purpose centrifuge.
5. It features environment-friendly compressor set with ideal cooling efficiency.
6. It is provided with several protection functions of over-speed, over-temperature, electronic door locking system for the safe and reliable operation of the centrifuge.
Technical Parameters
Model | CH12R |
Max. Speed | 5000rpm |
Max. RCF | 3354xg |
Max. Capacity | 8x10ml |
Speed Accuracy | ±50rpm |
Time Setting Range | 1min to 99min |
Temp. Setting Range | -20℃~40℃ |
Control Accuracy | ±2℃ |
Compressor | High performance hermetic rotary compressor (R134a) |
Noise | ≤60dB(A) |
Power Supply | AC220±22V 50/60Hz 10A |
Power Consumption | 450W |
Dimensions (WxDxH) | 420x470x350mm |
Net Weight | 30kg |
