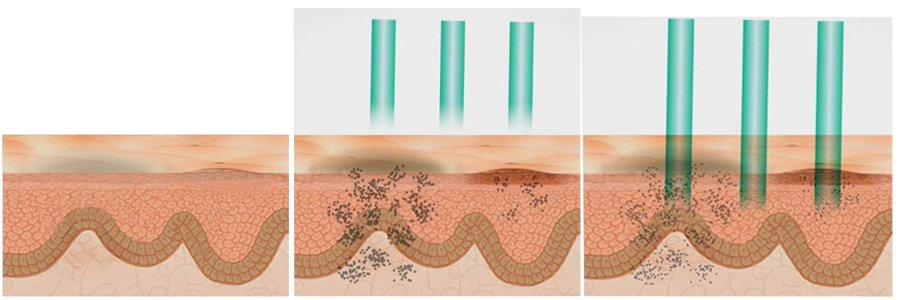

It uses the theory that specific wave length (1064nm or 532nm) of laser will be absorbed by specific pigment. The high energy of laser, absorbed by the specific pigment, could cause the pigment to swell and explode, partial fragments of the pigment will be shot out of the body, and the other pigment fragments will be removed by your body's immune system over a period of time. Because the normal skin absorb little energy induced by laser at the wavelength of 1064nm or 532nm, so the laser could selectively targets and destroys tattoo pigments but not damage the surrounding normal tissues.

                         theory 1


Application

1. Remove tattoo, including red, brown, blue and black
2. Remove tattoo of eyelid, eyebrow, eye line, lip line, etc
3. Remove freckles, foxiness, coffee, superficial and deeper speckles, age pigment, birthmark, nevus, sunburn spots, traumatic pigmentation
4. Black doll head is for skin whitening, skin rejuvenation

K_BDPH4K9S(Z_JX)(I6HT

Advantage

1. No scars, no scabs, no marks or any damages.
2. Selective absorb system, no harm to the normal tissue.
3. Instant effect, high customer satisfaction.

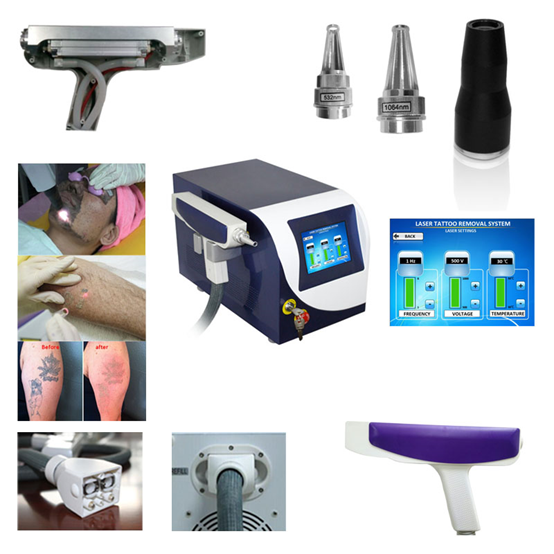

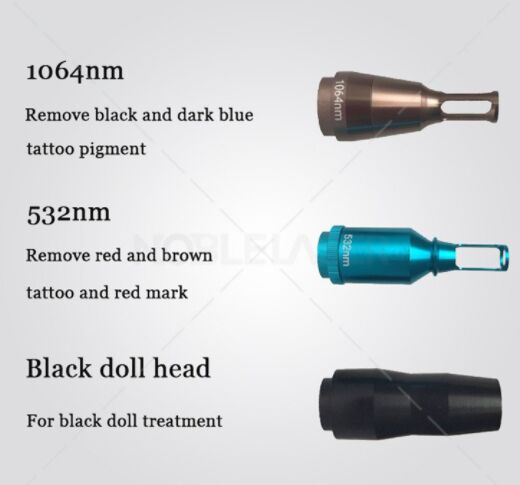

4. High power handpiece, strong output energy, 532nm, 1064nm and black doll heads.
5. Integrated laser cavity, anti-vibration and anti-swing, no beam deflection.
6. Car-used radiator, higher efficiency, long continuous working time.
7. Handpiece with infra-red indicator is available.

6_J`6J)6I7H6SL)ASZTK

GC1X2S)7IQC7P41HJRPP

Before & After



B&A 1


B&A 2

Specitication

Laser TypeQ-Switched Nd: YAG Laser
Heads1064nm+532nm+Black doll(1320nm)
Power500W
Pulse Energy1000mj
Duration (width)6ns
Pulse Repetition Rate1-6Hz
Voltage500-1000V
IndicatorInfrared Indicator is available
Treatment Area1-7mm²
Cooling SystemAir+ Water cooling
Tilt SensorAvailable
Screen5.7~10.4 inch color touch screen
