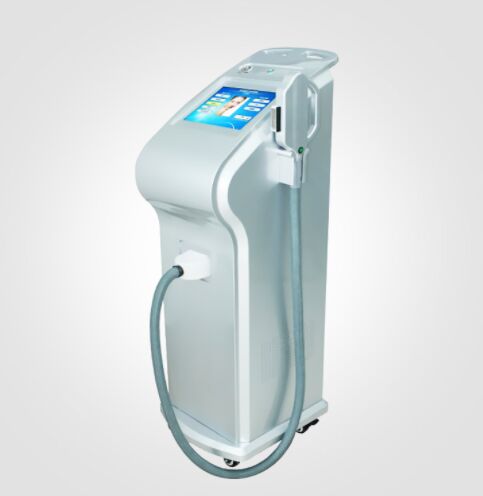

Elight IPL SHR Skin Care Beauty Equipment


The E-Light technology fully combines the advantages of optical energy and radio frequency. With the impedance difference in skin and pre-heat produced when the skin selectively absorbs optical energy, the targeted tissue absorbs radio frequency with lower optical energy. So with a very low risk of side effects-pigment lesion, blistering-generally caused by higher optical energy, we are able to achieve good result with comfortable treatment. The traditional IPL device can only reach 2mm into the skin, however, the E-light creates a deep penetration into the dermis about 15mm, which can achieve more applications, especially on wrinkle treatments and skin tightening.


skin care machine


Application

1. Acne treatment
2. Pigmentation treatment
3. Skin rejuvenation
4. Vascular therapy
5. Hair removal



Advantage

1. UK imported xenon lamp with high performance.
2. Japanese NCC capacitor with large-capacity and best performance.
3. USA & German connector of handpiece.
4. Different spot size suitable for different treatment areas.
5. Expert system with skin type and skin color selectable, easy to operate.
6. Air+Water+Semiconductor cooling, ensure painless experience for client.


Before & After

B&A 1


B&A 2


Specitication

TypeSuper Intense Pulsed Light

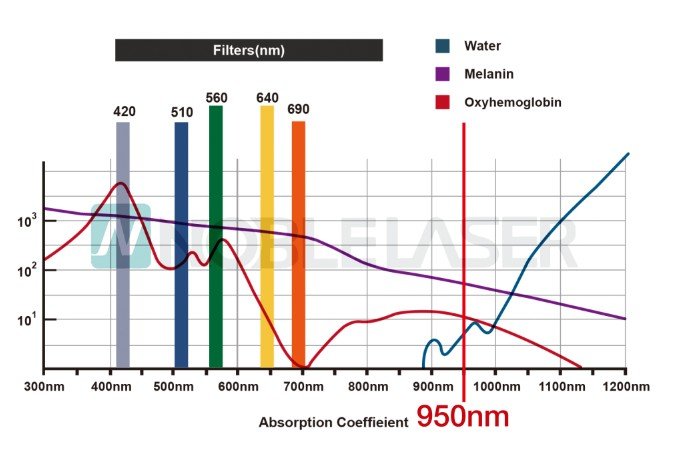

Wavelength480-950nm: remove acne
530 -950nm: pigmentation treatment
560 -950nm: skin rejuvenation
590-950nm: remove vascular
640-950nm: remove hair
690-950nm/755-950nm/810-950nm: remove hair (optional)
RF Frequency3MHz
RF Energy1-100J/cm2
IPL Energy1~50J/cm2
Power SupplyMax 2500W

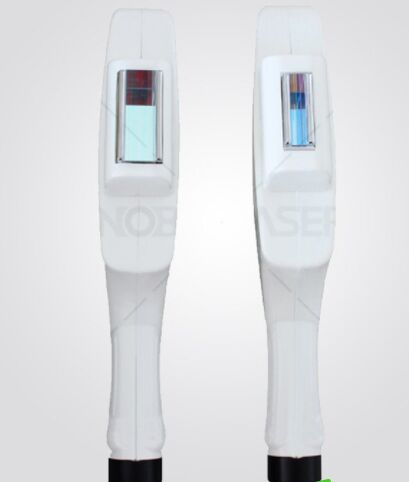

Spot SizeFilter handpiece: 12*12mm2, 12*30mm2, 13*40mm2, 15*50 mm2
Filter fixed handpiece: 8*40mm2, 14*40mm2, 16*50 mm2
Pulse Number1~6T
Pulse Interval1~99ms
Pulse Width0.1~9.9ms
Discharge Interval1~4s
RF Delay1~3s
Cooling Temperature-5~5℃
Cooling SystemAir+Water+Semiconductor cooling
Screen5.7~10.4 inch color touch screen
