•High-precision Temperature Control System •Powerful Refrigeration System •Effective Thermal Insulation System •Audible and Visual Alarm System •Platinum resistor temperature sensors

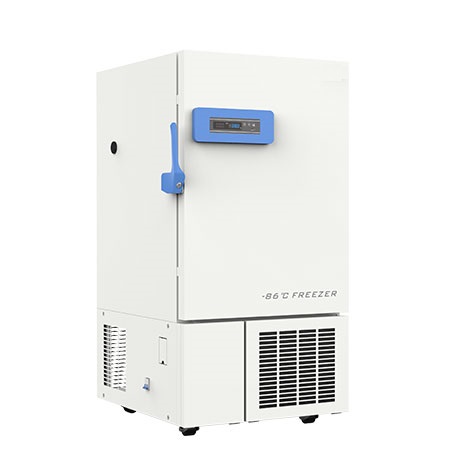

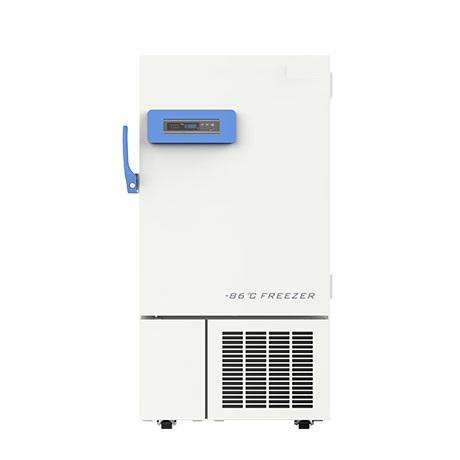

Introduction: Our -86°C ultra low temperature freezer BW-HL218 is a laboratory freezer and medical freezer. This ultra deep freezer is equipped with high-precision temperature control, ensuring the temperature uniformity in the cabinet with a range of -40°C to -86°C. The targeted refrigeration of the deep freezer enables fast refrigeration. It is designed in human-oriented with energy saving and environmentally friendly. It can safely store laboratory research materials, pharmaceutical raw materials, and more. This medical / laboratory deep freezer is suitable for using in blood banks, health and disease prevention systems, hospitals, colleges & universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, military enterprise, deep-sea fishing companies, etc. High-precision Temperature Control System The -86°C ultra low temperature freezer BW-HL218 comes with microprocessor-based temperature control system, which enables you to set the temperature inside the cabinet in the range of -40°C ~ -86°C freely. And it makes sure the controlling precision in 1°C. Powerful Refrigeration System BW-HL218 deep freezer is adopted Secop compressor and famous EMB fan, which are energy-saving and environmentally friendly. The large finned condenser with a space between fins less and equal to 2mm provides effective heat dissipation. Effective Thermal Insulation System This undercounter deep freezer is equipped with VIP Plus vacuum insulation foaming door with seal. And the six sides of the cabinet are made from high-performance vacuum insulation materials, which can perfectly improve the thermal insulation performance. Audible and Visual Alarm System Meling laboratory deep freezer has perfect audible and visual alarm system including sensor failure alarm, high/low temperature alarm, power failure alarm, door ajar alarm, Low battery etc. And it has feature in turn-on delay and stopping interval protection, ensuring reliable operation.
High-precision microcomputer temperature control system for easily and precisely temperature setting
The platinum resistor temperature sensors can realize more precise temperature control.
High-definition and easy-handling control panel to set the temperature range from -40°C to -86°C with digital temperature display precision in 1°C
Lockable door, keyboard lock and password access prevents any unauthorized access and operation
Upright deep freezer with stainless steel and painted steel panel outer materials, and 4 universal casters for easy handling
Adjustable 2-3 stainless steel shelves with inner door and double silicon gasket seal
With USB data logging function, record 2 years data.
Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ.
Optional: Chart recorder, CO2 back up system, freezer racks/boxes
Scope of ApplicationUltra low deep freezer BW-HL218 can be used as laboratory freezer, ultra low medical freezer and vaccine freezer，suitable for use in hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.
| -86℃ Ultra-low Temperature Freezer | |
| Model | BW-HL218 |
| Capacity(L) | 218 |
| Internal Size(W*D*H)mm | 470*580*767 |
| External Size(W*D*H)mm | 862*976*1555 |
| Package Size(W*D*H)mm | 983*1073*1741 |
| NW/GW(Kgs) | 218/235 |
| Performance | |
| Temperature Range | -40～-86℃ |
| Ambient Temperature | 16-32℃ |
| Cooling Performance | -86℃ |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling Method | Direct Cooling |
| Defrost Mode | Manual |
| Refrigerant | Mixture gas |
| Insulation Thickness(mm) | 155 |
| Construction | |
| External Material | High quality steel plates with spraying |
| Inner Material | Stainless steel |
| Shelves | 1（Stainless steel） |
| Door Lock with Key | Yes |
| External Lock | Yes |
| Access Port | 1pc. Ø 40 mm |
| Casters | 4 |
| Data Logging/Interval/Recording Time | USB/Record every 10 minutes / 2 years |
| Backup Battery | Yes |
| Alarm | |
| Temperature | High/Low temperature,High ambient temperature |
| Electrical | Power failure,Low battery |
| System | Sensor failure, Condenser overheating ,Door ajar, Built-in datalogger USB failure, Main board communication error |
| Electrical | |
| Power Supply(V/HZ) | 220-240~/50 |
| Rated Current(A) | 5.96 |
| Accessories | |
| Standard | RS485,Remote alarm contact |
| Options | Chart recorder, CO2 backup system, Printer |
