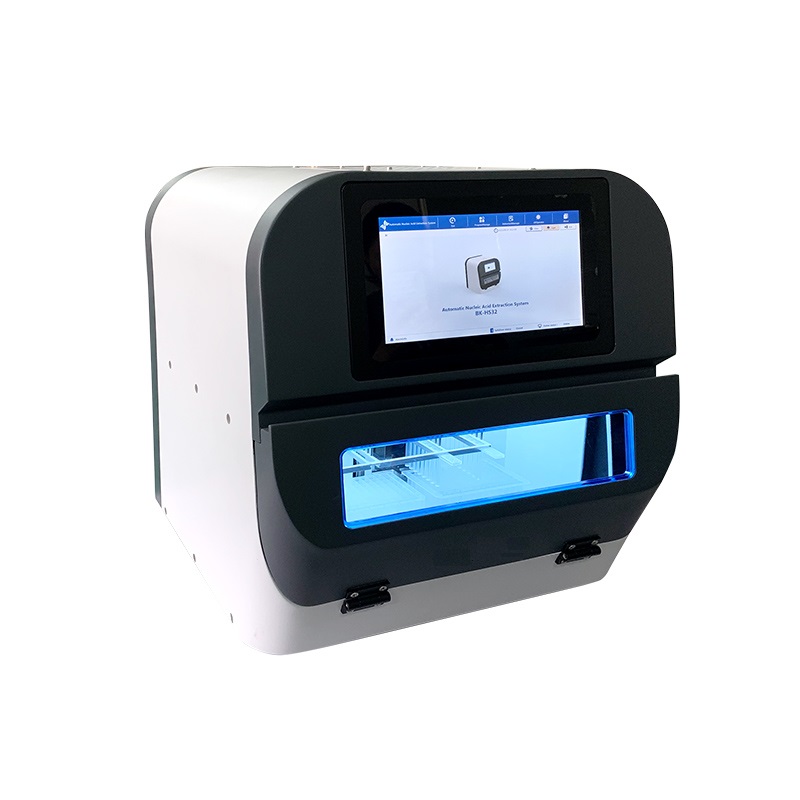

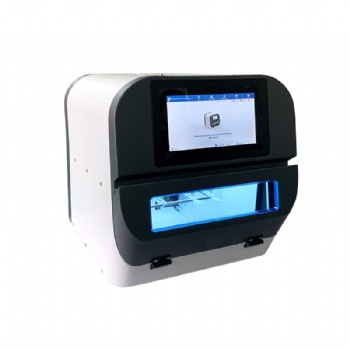

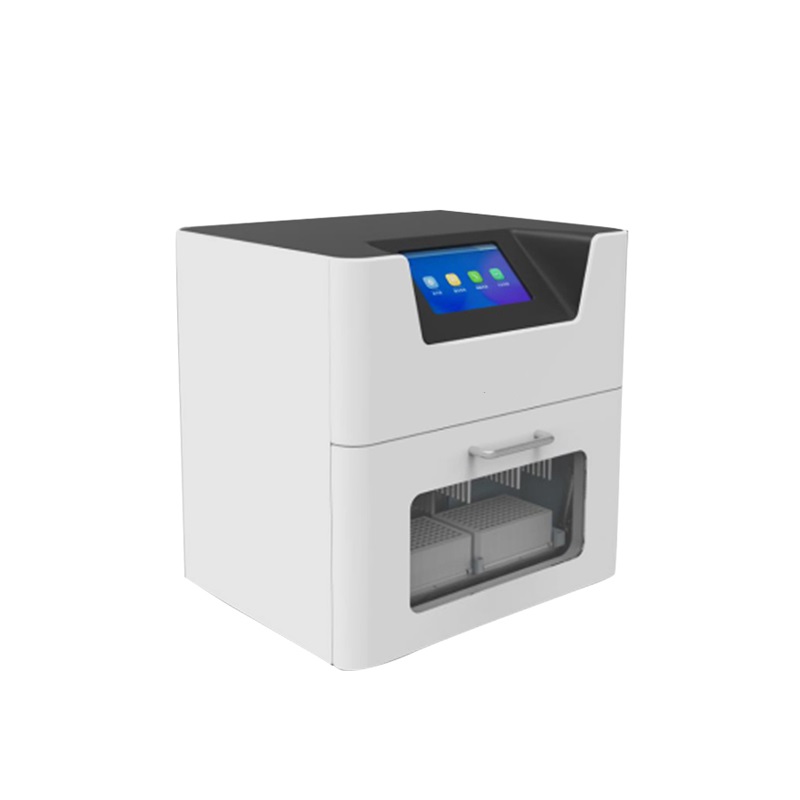

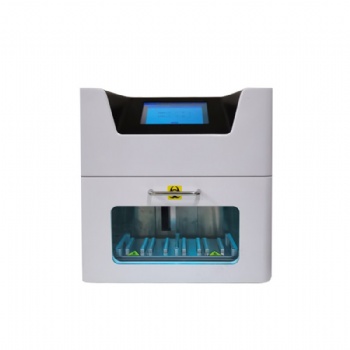

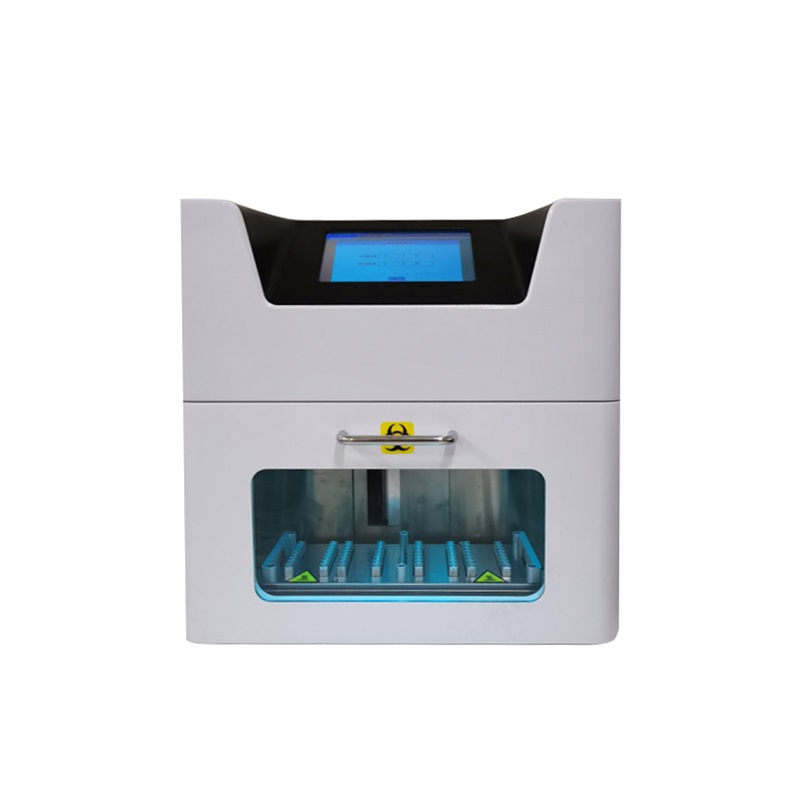

Nucleic Acid Extration System BNP32/48

Feature:

1. 7-inch touch screen, easy to use, fast response

2. User-defined cracking and elution temperature

3. UV disinfection fuction, time range 1min-24hour

4. Automatic control system, no need connect to computer

5. Free programming to meet the needs of different reagent

6. Open system, fully automatic, stable results and good repeatability

7. Extract rapidly 9-40 minutes , 32/48 samples can be extracted at the same time

8. Specifications

Model	BNP32	BNP48
Sample Quantity	32	48
Processing Volume	60µL-1000µL
Sample Volume	20-500µL	48
Sample Throughput	1-32
Magnetic Bead Recovery	>98%
Extracting the Difference Between Holes	CV≤3%
Heating Temperature	8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
Oscillating Mixing	Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type	Magnetic bead open platform
Extraction Time	15-40 min/round (depending on the reagent used)
Internal Program	Be able to store >100 groups of programs
Program Management	Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved
Safety Door Design	After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after the safety door closed
Built-in Air Duct	No	Yes
Ultraviolet Irradiation	Yes
Packing Size(WDH)mm	580510700mm	700520750mm
Gross Weight(kg)	51kg	80kg
