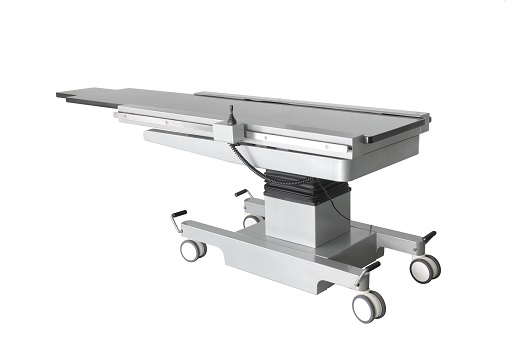

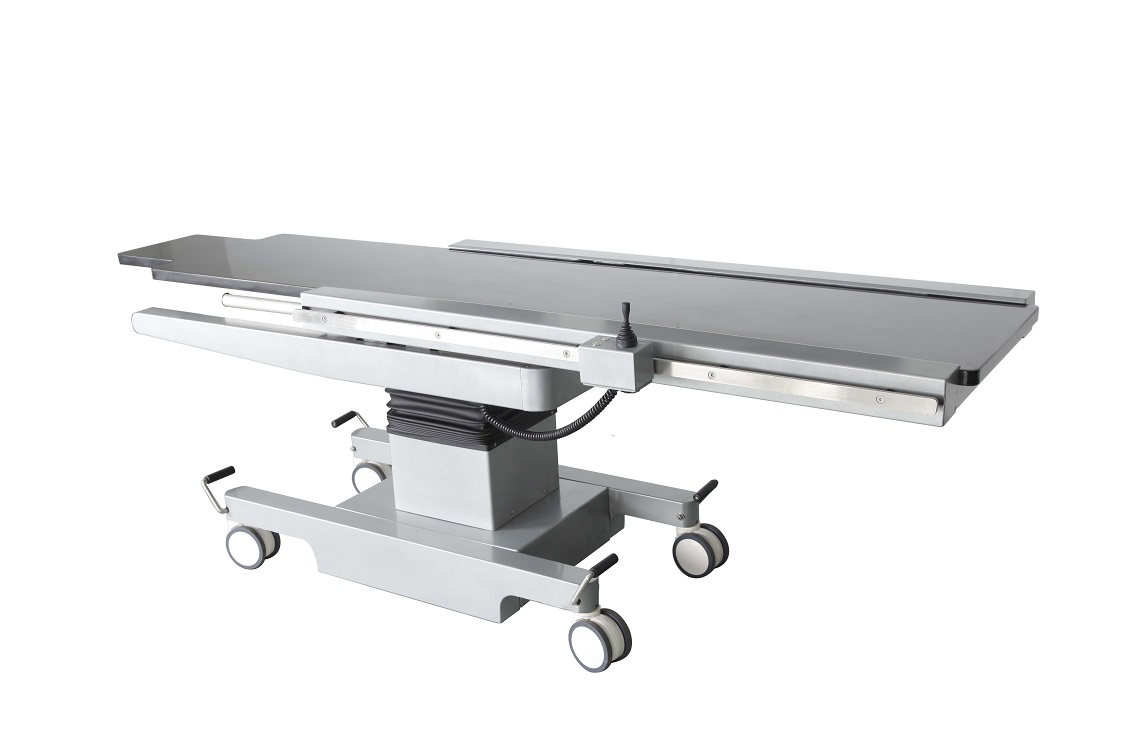

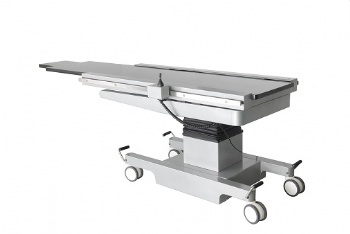

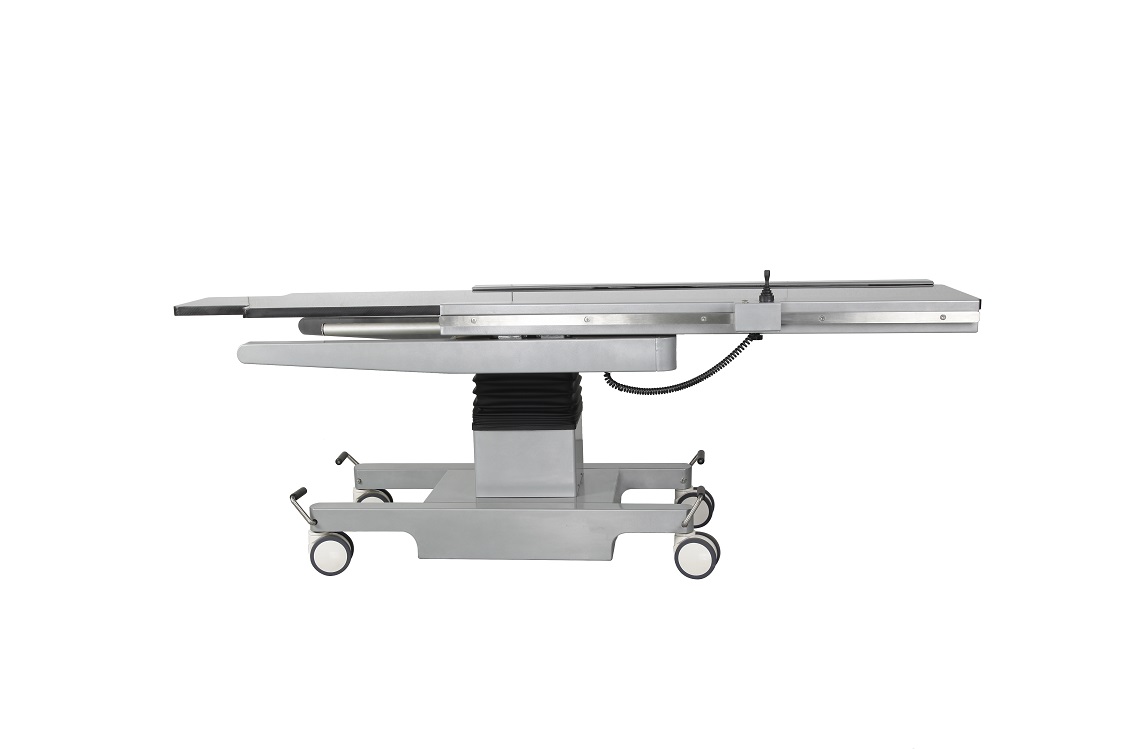

Imaging Table For C Arm

Introduction:

Electric orthopaedic surgery imaging table,specifically for development of minimally invasive treatment, it fully combined with modern medical imaging diagnostic techniques and its design conform with human body engineering.The table can satisfy the neurosurgeryspine surgery otolaryngology,plastic surgery and radiosurgery requirements for 3D imaging
The table is easy to operate by handle and remote controller
The big wheels with brake make the table easy to move and position
The movements are stepless adjustments

Basic model:Transverse move,Longitudinal move and Vertical move

Advanced model:More movements like Trendelenburg/reverse trendelenburgLateral tilt

Technical Specifications:

Tabletop Length 2400mm

Tabletop Width 550mm

Min Height 800mm

Max Height 1000mm

Longitudinal Move 800mm

Transverse Move 200mm

Options for advanced model:

*Trendelenburg/Reverse Trendelenburg 18

*Lateral Tilt 27*
